When two polymers come together in a single fiber, something remarkable happens the resulting material inherits the best characteristics of both components while overcoming the limitations of either alone. That is the foundational promise of bicomponent yarn, and it is a promise the global textile industry has been cashing in on for decades.
Whether you are a textile engineer exploring advanced fiber science, a product developer sourcing innovative materials, or a curious mind trying to understand what gives your performance sportswear its remarkable stretch and recovery, bicomponent yarn is at the heart of the story.
In this comprehensive guide, we walk you through everything you need to know about bicomponent yarn its definition, cross-sectional structures, manufacturing process, key properties, and the wide-ranging applications that make it indispensable across industries.
What Is Bicomponent Yarn?
Bicomponent yarn (also referred to as bicomponent fiber or conjugate fiber) is a synthetic filament yarn produced by extruding two different polymers simultaneously through a single spinneret. The two polymers are combined within the same fiber cross-section, creating a unified filament that possesses a unique combination of physical and chemical properties derived from both materials.
Unlike conventional single-polymer yarns where every filament is made of one homogeneous material — bicomponent yarn is engineered at the molecular level to deliver performance characteristics that neither polymer could achieve independently.
The concept was first commercialized in the 1960s and has since evolved into one of the most technically sophisticated areas of fiber engineering. Today, bicomponent yarns are used in everything from hospital gowns to automotive upholstery, from sportswear to industrial filtration.

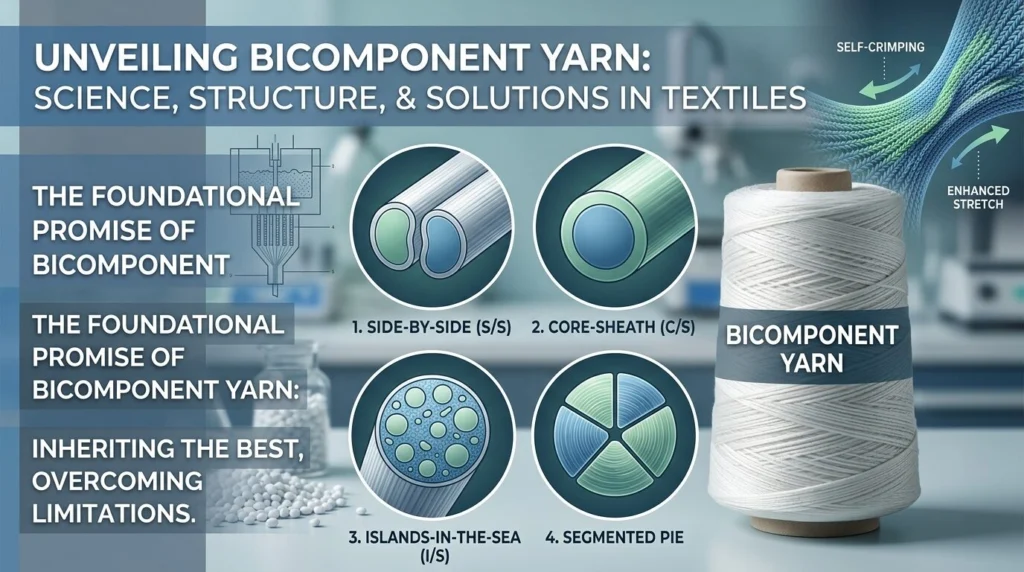

Types of Bicomponent Yarn Structures
The performance of bicomponent yarn is directly determined by how the two polymer components are arranged within the fiber’s cross-section. The industry has developed several distinct structural configurations:
1. Side-by-Side (S/S) Bicomponent Fiber
In the side-by-side configuration, two polymers are positioned adjacently along the length of the fiber. Because the two polymers have different thermal shrinkage rates, the fiber naturally crimps when heat is applied, creating a coil or helical structure. This self-crimping effect is the basis for many elastic and textured yarns used in hosiery, knitwear, and comfort apparel.
- Key applications: Hosiery, socks, knitwear, textured upholstery fabrics
2. Core-Sheath (C/S) Bicomponent Fiber
The core-sheath structure envelops one polymer (the core) inside another (the sheath). This architecture allows for precise engineering: the core provides structural strength or elasticity, while the sheath determines surface characteristics such as dyeability, softness, or chemical resistance.
- Key applications: Thermal bonding nonwovens, filtration, activewear, medical textiles
3. Islands-in-the-Sea (I/S) Bicomponent Fiber
In this configuration, dozens to hundreds of tiny ‘island’ filaments of one polymer are suspended within a continuous ‘sea’ of another polymer. After spinning, the sea component is dissolved away, leaving behind ultrafine microfibers with exceptional softness and surface area.
- Key applications: Synthetic suede, microfiber cleaning cloths, high-performance filtration membranes
4. Segmented Pie Bicomponent Fiber
The segmented pie structure divides the fiber cross-section into pie-like wedge segments. When split, it produces microfibers with angular cross-sections and exceptional wicking, softness, and breathability.
- Key applications: Sportswear, activewear, high-performance wipes
Polymers Used in Bicomponent Yarn
Common polymer pairings in bicomponent yarn production:
| Component A | Component B | Purpose |
| Polyester (PET) | Nylon (PA6/PA66) | Softness + Strength |
| Polyester (PET) | Low-melt Polyester | Thermal bonding |
| Polypropylene (PP) | Polyethylene (PE) | Nonwoven hygiene |
| Polyester (PET) | PTT (Polytrimethylene Terephthalate) | Elastic recovery / stretch |
How Is Bicomponent Yarn Manufactured?
The production of bicomponent yarn involves specialized spinning equipment managing two separate polymer streams simultaneously, combining them at the spinneret level.
- Step 1: Each polymer is dried, melted, and pressurized separately in independent extruder systems.
- Step 2: Both polymer streams are fed into a specially designed bicomponent spinneret pack. The internal geometry determines whether the output is core-sheath, side-by-side, or another configuration.
- Step 3: The extruded bicomponent filaments pass through a quench zone where they are rapidly cooled by air.
- Step 4: The cooled filaments are drawn (stretched) to increase tenacity and control elongation.
- Step 5: The final bicomponent yarn is wound onto bobbins at controlled tension.
Key Properties of Bicomponent Yarn
Self-Crimping and Natural Elasticity
Side-by-side bicomponent yarns achieve significant crimping through heat activation alone, without the need for mechanical texturing. This translates into comfort stretch in fabrics that feel natural rather than rubbery.
Superior Moisture Management
Segmented pie and islands-in-the-sea structures produce fibers with dramatically increased surface area, enabling faster wicking, faster drying, and better overall moisture management in activewear.
Thermal Bonding Capability
Core-sheath bicomponent fibers with a low-melting-point sheath enable thermal bonding in nonwoven fabrics without chemical adhesives — critical in hygiene products, medical textiles, and filtration media.
Enhanced Softness
The microfibers produced by splitting segmented pie or islands-in-the-sea bicomponent fibers have a diameter smaller than silk, resulting in fabrics with extraordinarily soft hand feel.
Dimensional Stability
Properly engineered bicomponent yarns deliver excellent dimensional stability under repeated washing and wearing cycles, especially when polyester forms one of the two components.
Applications of Bicomponent Yarn
Apparel and Sportswear
- Stretch knitwear using self-crimping side-by-side fibers
- Moisture-wicking sportswear using segmented pie microfibers
- Seamless garment construction leveraging elastic bicomponent yarns
Hygiene and Medical Nonwovens
- Diapers and adult incontinence products using PE/PP core-sheath fibers for thermal bonding
- Medical wipes, surgical drapes, and wound care textiles
Industrial and Technical Textiles
- High-efficiency filtration media (HVAC, automotive, industrial)
- Automotive interior fabrics and geotextiles
Bicomponent Yarn vs. Other Stretch Technologies
Bicomponent yarn vs. Elastane/Spandex: Elastane provides elasticity through a single high-stretch polymer. Bicomponent yarn achieves stretch through differential shrinkage or molecular architecture, often yielding a softer, more natural stretch with better recovery at moderate elongation levels.
Bicomponent yarn vs. Mechanical Stretch: Mechanical stretch achieves fabric elasticity through the geometric construction of the weave or knit structure rather than the fiber itself. Bicomponent yarn can complement or replace mechanical stretch depending on application requirements.
Sustainability Considerations
The multi-polymer nature of bicomponent fibers can complicate recycling, as separating two different polymers at end-of-life is technically difficult. However, bicomponent fibers can reduce the need for added elastane (which is notoriously difficult to recycle) and enable recyclable nonwovens when both components are from the same polymer family.
Frequently Asked Questions
Q1: What is the difference between bicomponent and biconstituent fiber?
Bicomponent fibers contain two polymers in distinct, separate regions within the fiber cross-section (e.g., core-sheath). Biconstituent fibers are made from two polymers that are blended or mixed together rather than kept in discrete zones.
Q2: Can bicomponent yarn be dyed?
Yes, but dyeability depends on the polymer combination. PET/PA bicomponent yarns can be differentially dyed to create interesting two-tone or heathered effects.
Q3: Is bicomponent yarn the same as microfiber?
Not exactly. Bicomponent yarn is a category of fiber architecture. Some bicomponent yarn structures produce microfibers after splitting, but not all bicomponent yarns are microfibers.
Q4: What is the typical denier range for bicomponent yarn?
Bicomponent yarns are available across a wide range, from very fine multifilament yarns (50 denier / 144 filaments) to coarser staple fiber configurations, depending on the end application.
Q5: How does bicomponent yarn contribute to stretch without elastane?
Side-by-side and PET/PTT bicomponent structures achieve stretch through differential thermal shrinkage or molecular geometry. This allows designers to create comfortable stretch garments with all-polyester or all-nylon compositions that are more recyclable than elastane-blended fabrics.
Q6: Are bicomponent yarns used in nonwovens?
Absolutely. Core-sheath bicomponent fibers with low-melt sheaths are one of the most important raw materials in the nonwoven industry, used extensively in diapers, wipes, filtration fabrics, and medical textiles.
Conclusion
Bicomponent yarn is one of the most ingenious innovations in modern textile science. By engineering two polymers into a single fiber cross-section, textile manufacturers have unlocked a toolbox of performance properties elasticity, softness, moisture management, thermal bonding, and more that single-component fibers simply cannot deliver. As fabric performance demands intensify and sustainability pressures mount, bicomponent yarn will only grow in strategic importance.
